Optional mounting accessory

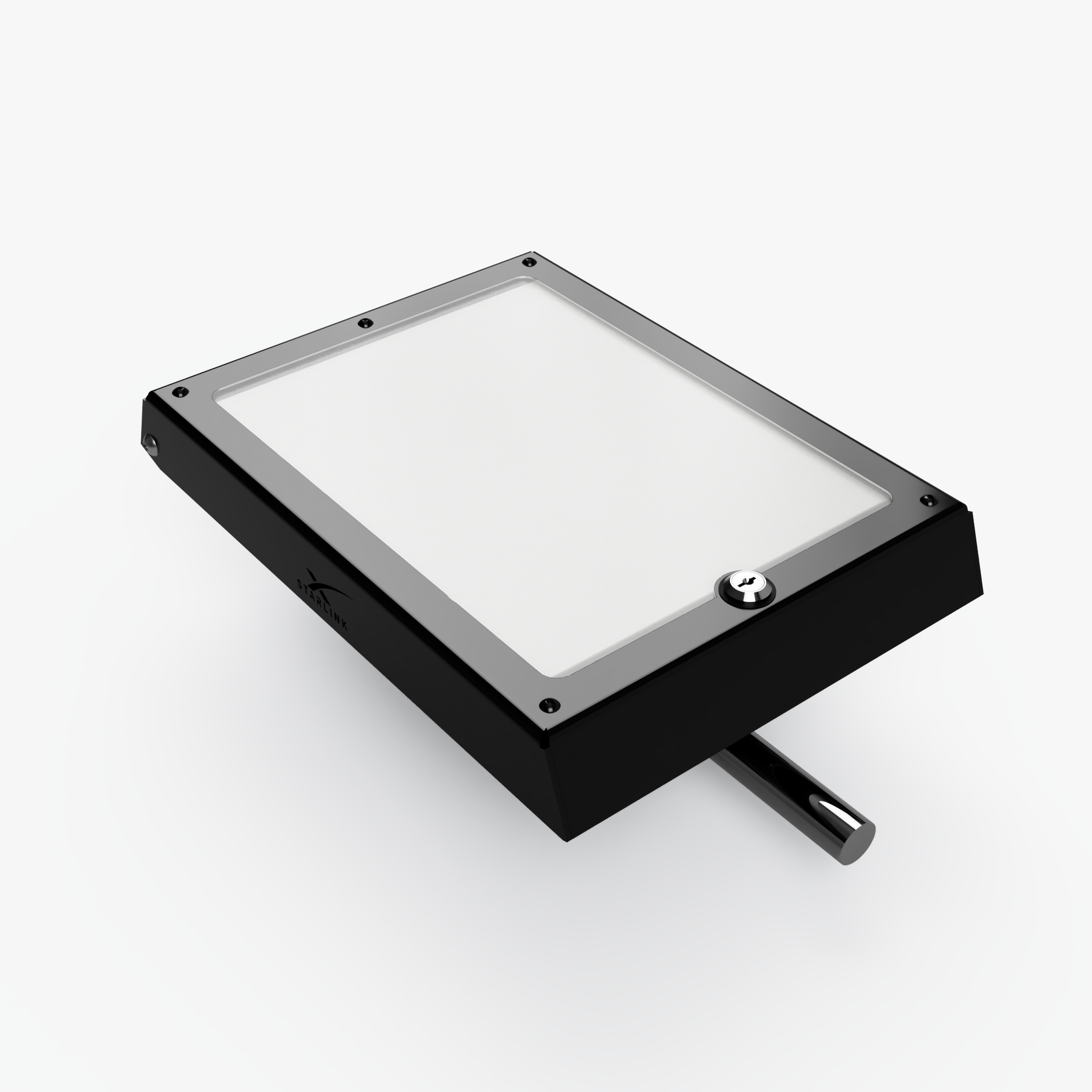

Mount your Starlink Mini enclosure to a round bar instead of a roof panel. The Pole Clamp Adapter bolts to the underside of the Rooftop Power Hub and clamps onto any round tube from 6 mm to 32 mm, with no drilling and no magnets.

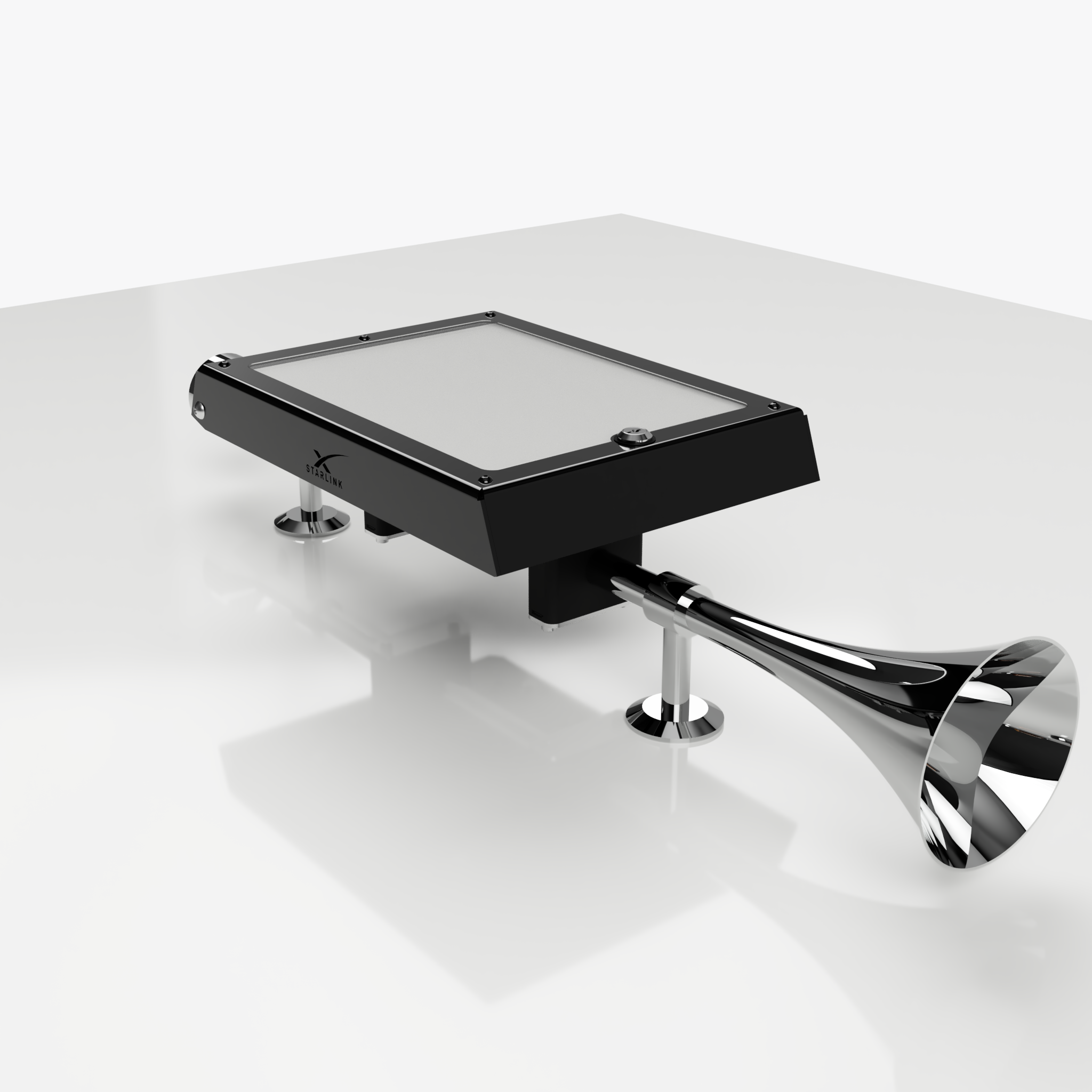

It suits truck air horn bars and mirror arms, boat handrails, bimini and T-top frames, and other round tube.

How it works

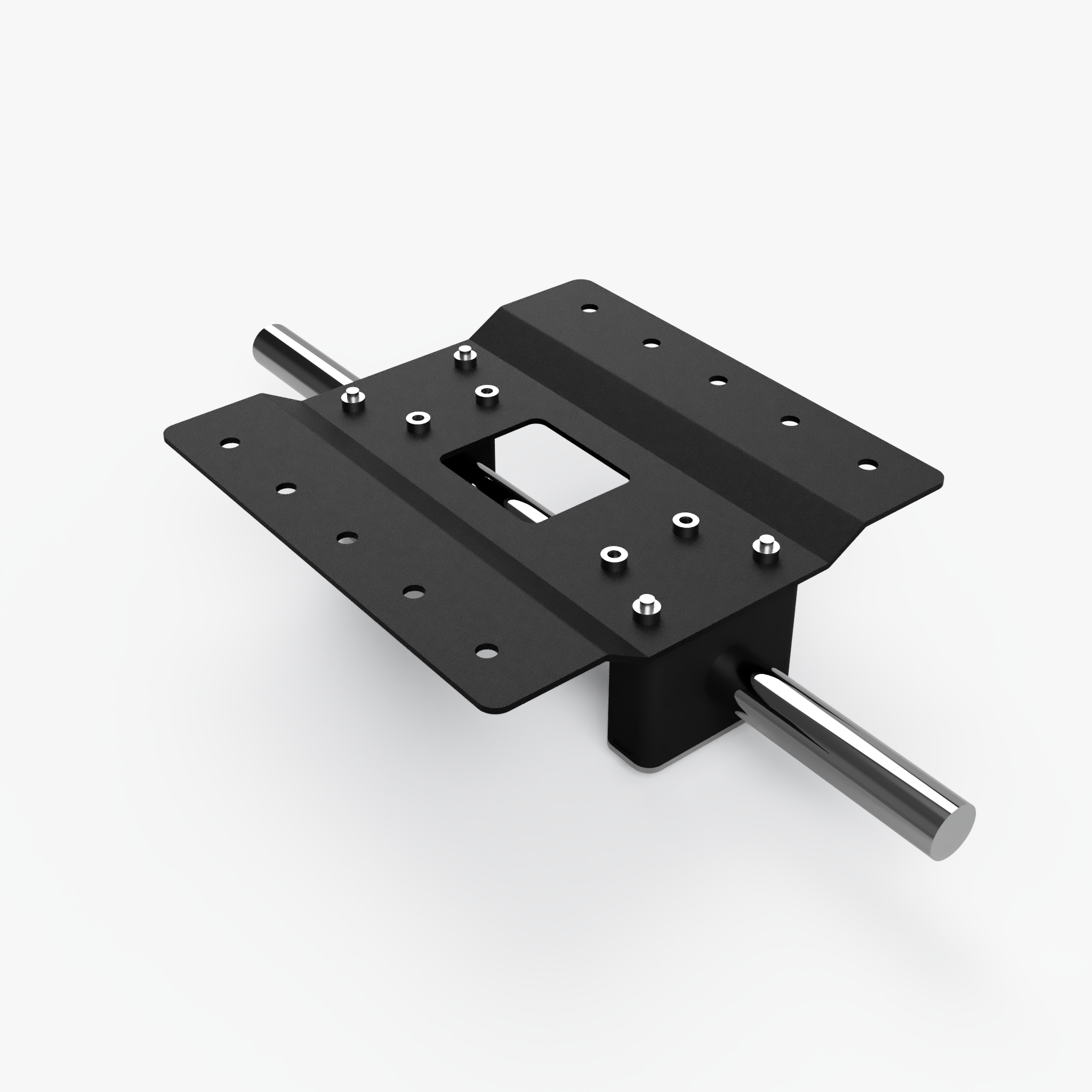

• A folded 3 mm aluminium plate bolts to the enclosure's existing M8 base slots.

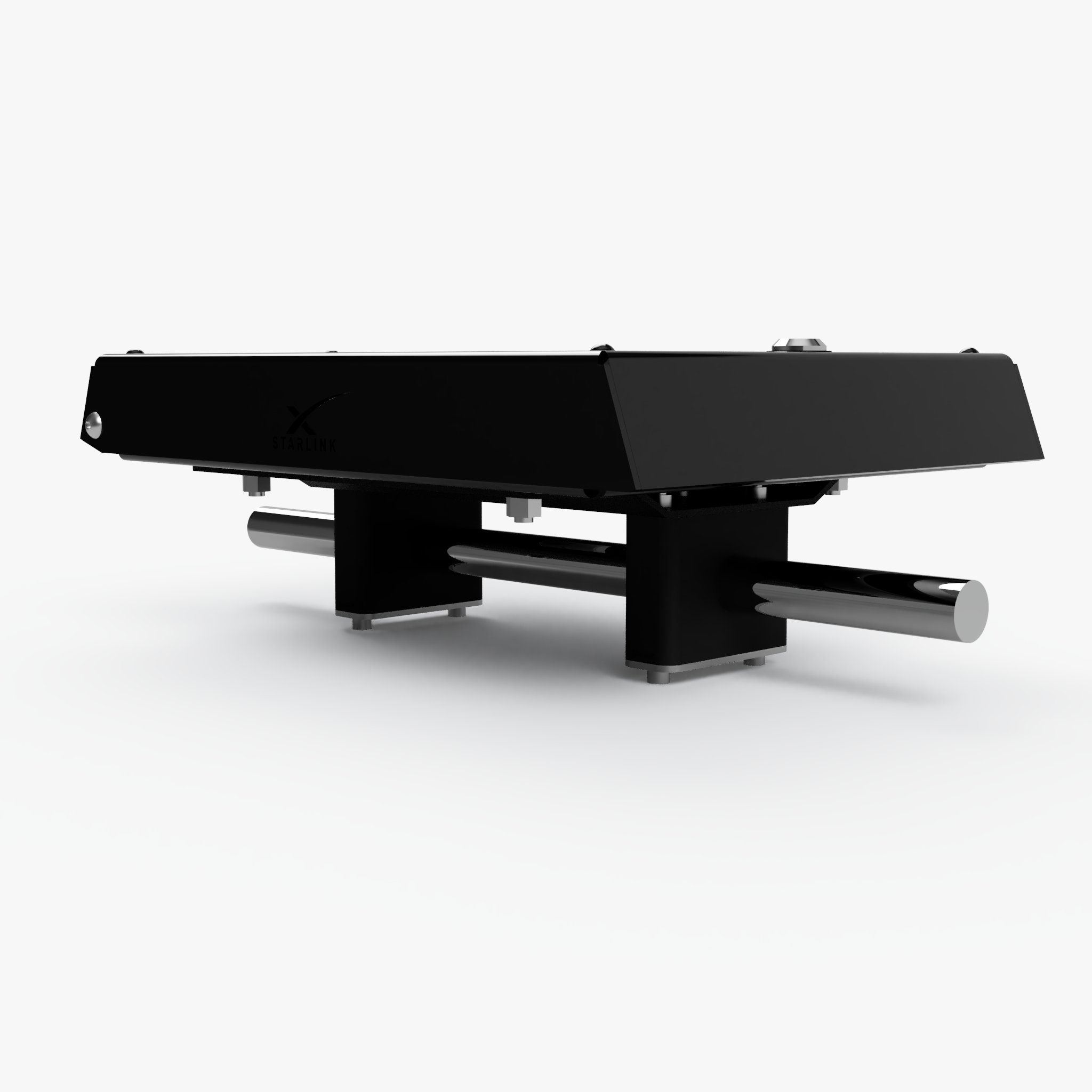

• Two two-piece pipe clamps with rubber inserts grip the tube directly under the centre of the enclosure. The inserts cushion the tube and protect chrome and polished finishes.
• The clamp screws fasten from underneath with a 5 mm hex key, so you can fit, adjust or remove the clamps with the enclosure already bolted on.
• Before tightening, rotate the mount around the tube to level the dish.

One plate, any tube size

The same plate takes every clamp size. Choose the clamp kit that matches your tube's outside diameter: 6, 8, 10, 12, 12.7, 14, 15, 16, 17.2, 18, 19, 20, 21.3, 22, 25, 26.9, 28, 30 or 32 mm.

Measure your tube with calipers before ordering. The clamps are sized to the tube and are not adjustable between sizes.

Cable entry stays open

A cable window in the plate lines up with the cutout in the enclosure base, and a 12 mm channel under the enclosure is open at both ends, so the cable can drop past the tube or run out either end.

Built for salt and weather

• 316 stainless steel fasteners and clamp cover plates
• Nylon isolation washers between the stainless hardware and the aluminium plate
• STAUFF DIN 3015 clamp bodies in polypropylene with rubber inserts

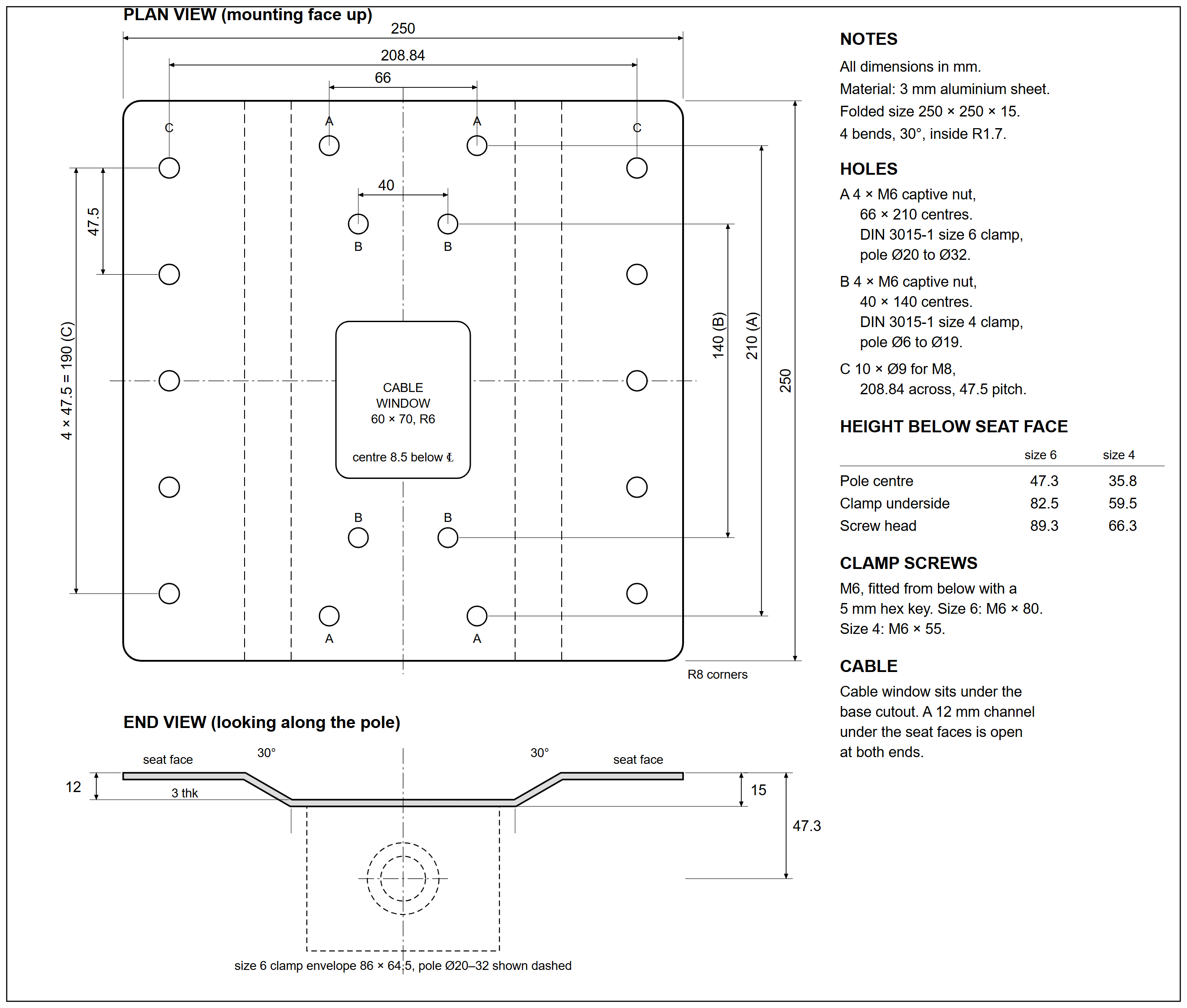

Specifications

In the box

• Adapter plate with captive M6 nuts fitted
• 2 × pipe clamps with rubber inserts, in your chosen size
• 2 × stainless clamp cover plates
• 4 × M6 stainless clamp screws and washers
• 4 × M8 stainless screws, nyloc nuts, washers and nylon isolation washers

Before you order

• For horizontal or near-horizontal tube. It does not suit a vertical post.
• The tube must be round and able to carry the weight of the enclosure and dish.
• The Rooftop Power Hub and Starlink Mini are sold separately.
